In Basic Viewer or Diagnostic Viewer mode, the right panel is the Measurement Panel. The Measurement Panel can be expanded or hidden by clicking on the arrow to the left of Measurements.

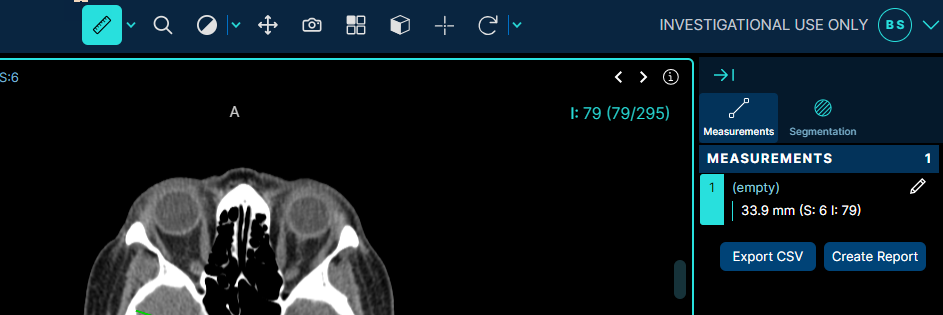

Image Description: Screenshot showing the tracked measurement in the measurement panel
Labeling Measurements
You can edit the measurement name by hovering over the measurement and selecting the edit icon. You can also label or relabel a measurement by right-clicking on it in the viewport.

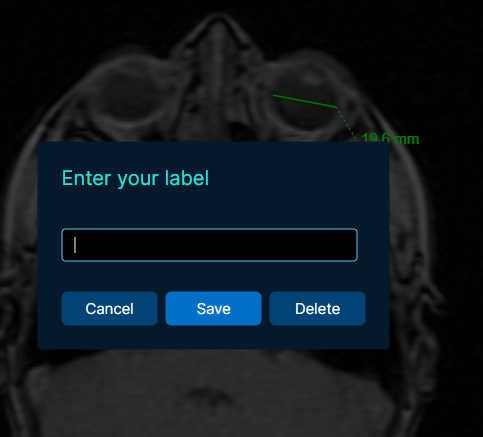

Image Description: Screenshot of the prompt to annotate a measurement
Entering an annotation will create a label for a measurement.

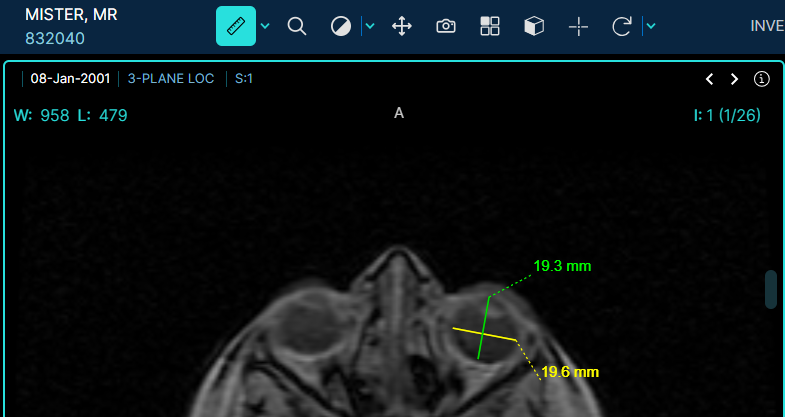

Image Description: Screenshot of a measurement annotation label
Deleting a Measurement
A measurement can be deleted by either right-clicking on the measurement in the viewport and selecting “Delete measurement” or using delete button next to measurement in the measurement panel on the right.

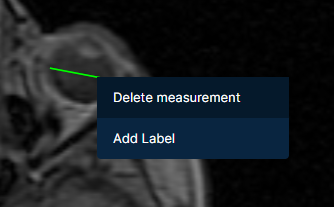

Image Description: Screenshot of right-clicking a measurement and deleting it
Image Description: Screenshot of using delete button next to measurement to delete it
Navigating Between Measurements
The top of the viewport contains a set of arrows that allow you to navigate between measurements.
Image Description: Screenshot of the arrows at the top of the viewer that allow navigating between measurements
Exporting Measurements
Clicking on the “Export” button in the measurements panel will generate a .csv file containing all of the measurements in the panel.
Image Description: Screenshot of the arrows at the top of the viewer that allow navigating between measurements
You can create a DICOM Structured Report (SR) by clicking on “Create Report” in the measurements panel. Note: Your data image source must support (or be correctly configured) for this feature to be enabled otherwise you will receive a warning message.

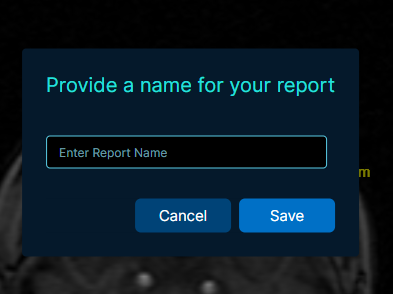

Image Description: Screenshot of the DICOM SR Report Creation Prompt
