The viewport displays canvases that render series.
Tools
The following tools allow you to modify image views in the viewport:

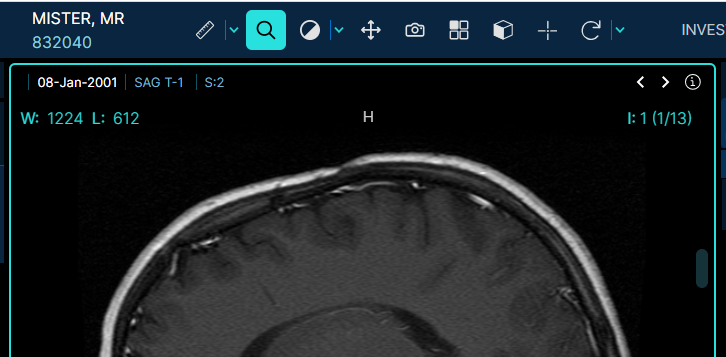

Zoom: Click and drag up to zoom out, click and drag down to zoom in
Image Description: Screenshot of using the Zoom tool

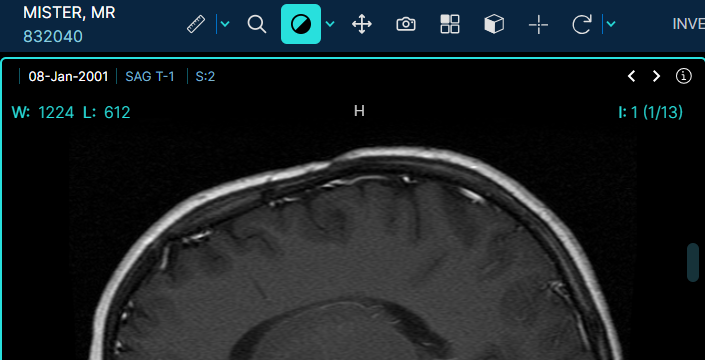

Window/level: Click and drag up/down to change contrast, click and drag left/right to change brightness
Image Description: Screenshot of adjusting the window/level

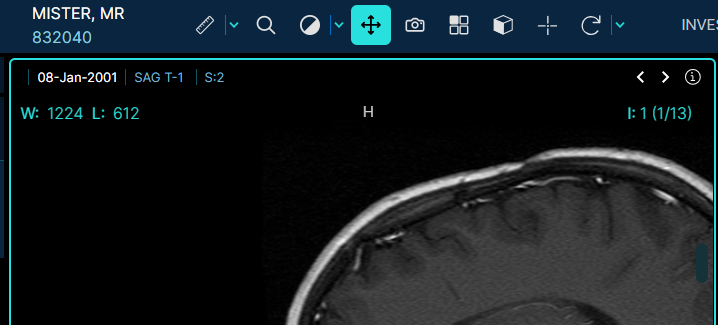

Pan: click and drag to move the image position in the viewport
Image Description: Screenshot of adjusting image position
Changing Series on Display
Double clicking or dragging and dropping the desired series from the left panel will change the series on display in the viewport.
Image Description: Screenshot of the series pane
Changing Layout
The Grid Layout tool allows you to change the layout of the viewer by first selecting one of the common layouts or selecting a custom layout of your choosing.
Image Description: Screenshot of the grid layout tool being used to select a 4x4 grid
After changing the layout grid, you can select studies for each new viewport in the grid by dragging and dropping studies into the viewport.
After changing the layout from 1x1, you will see each viewport gets labeled with a letter which matches its series section in the study list.
Image Description: Screenshot of the 4x4 grid with series labels in the left panel
