Study List

Updated

Study List Overview

The first page that displays when FlexView is loaded is the Study Browser. In this page you can explore all the studies in the Study List.

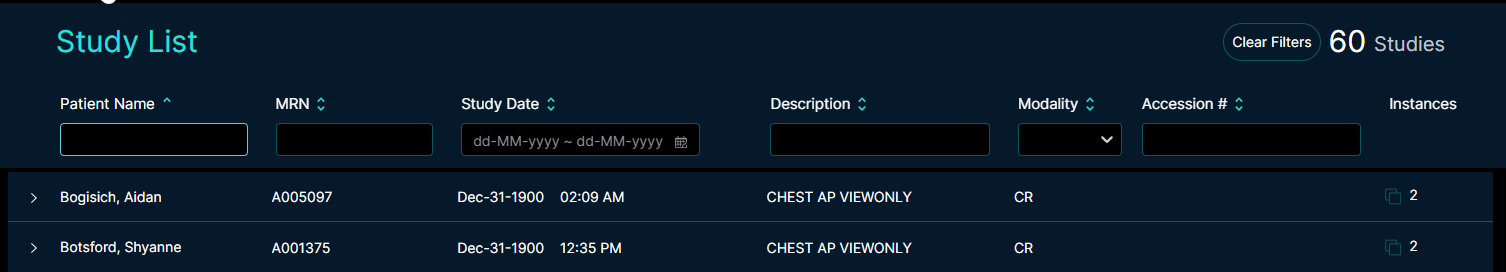

Image description: A screenshot of the Study List View in FlexView

Sorting

The Study List can be sorted by each of the following categories:

  • Patient Name: Sorts alphabetically by patient name
  • MRN: Sorts numerically by Medical Record Number
  • Study Date: Sorts chronologically by date
  • Description: Sorts by study description
  • Modality: Sorts alphabetically by modality
  • Accession: Sorts numerically by accession number

Each of the sorts can be changed from ascending to descending or removed by clicking the category name.

Image description: A Screenshot of the Study List Sorted by Patient Name

Filters

Applying a filter will limit the Study List to the specified criteria. The available filters in FlexView are as follows:

  • Patient Name: Filters to all studies with the specified patient name
  • MRN: Filters to all studies with the specified Medical Record Number
  • Study Date: Filters to all studies with the specified date of image acquisition
  • Description: Filters to all studies containing the specified text in the study description
  • Modality: Filters to all studies with specified modalities
  • Accession: Filters to all studies with a specified accession number

Here is an example of the Study List with the Modality filter applied to find CT studies:


Image description: A screenshot of the Study List with the Modality filter applied



When you apply a filter, you can apply additional filters or sort the filtered list.

Here is an example of the Study List with the Modality filter applied to find CR studies and the MRN filter applied to find a specific patient:

Image description: A Screenshot of the Study List filtered by Modality and MRN



Study Summary

Click on a study to expand the study summary panel.

A summary of series available in the study will be displayed. The summary contains the series description, series number, modality of the series, instances in the series, and buttons to launch viewer modes to display the study.

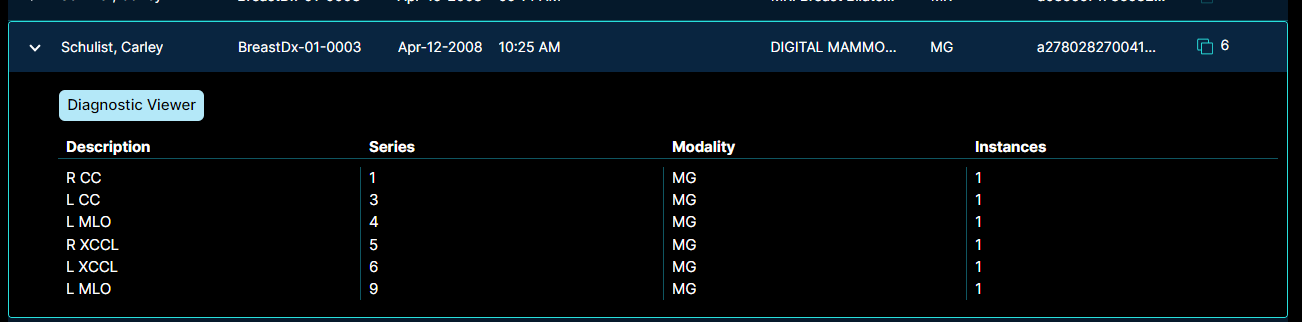

Image description: A Screenshot of the Study Summary Panel



Study Specific Modes

All available modes are seen in the study summary view. Modes can be enabled or disabled for a study based on the modalities contained within the study.

In the screenshot below, there are 4 modes shown for the selected study:

  • Basic Viewer
  • PET SUV
  • Microscopy
  • AI

The modes that are not highlighted are not available for that study based on its modalities.

Image Description: Screenshot of a Study with 2 Modes Available



Copying Information from Study List

To copy information from the study list, hover over the text and a small box will appear with a copy icon. Click the icon to copy the information.

copy studylist.png

Image Description: Screenshot of a copying an MRN from the study list
